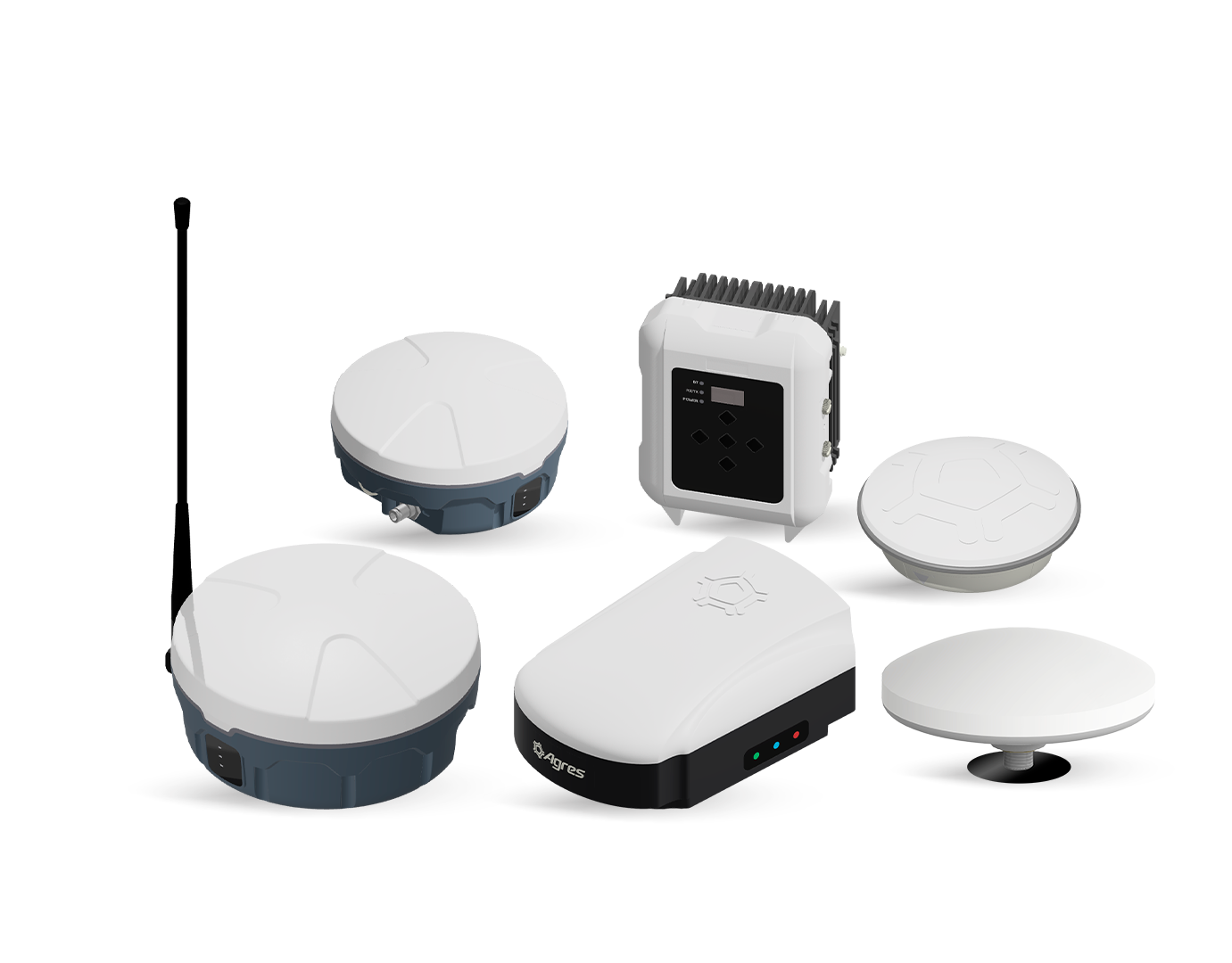

REFERENCE THAT DEFINES THE POSITIONING Antenna Line

Intelligent and robust antennas for agricultural navigation and control, with performance ranging from decimeter to centimeter levels depending on the operational needs. Compatible with the main global positioning systems, they guarantee stability and efficiency in the field.

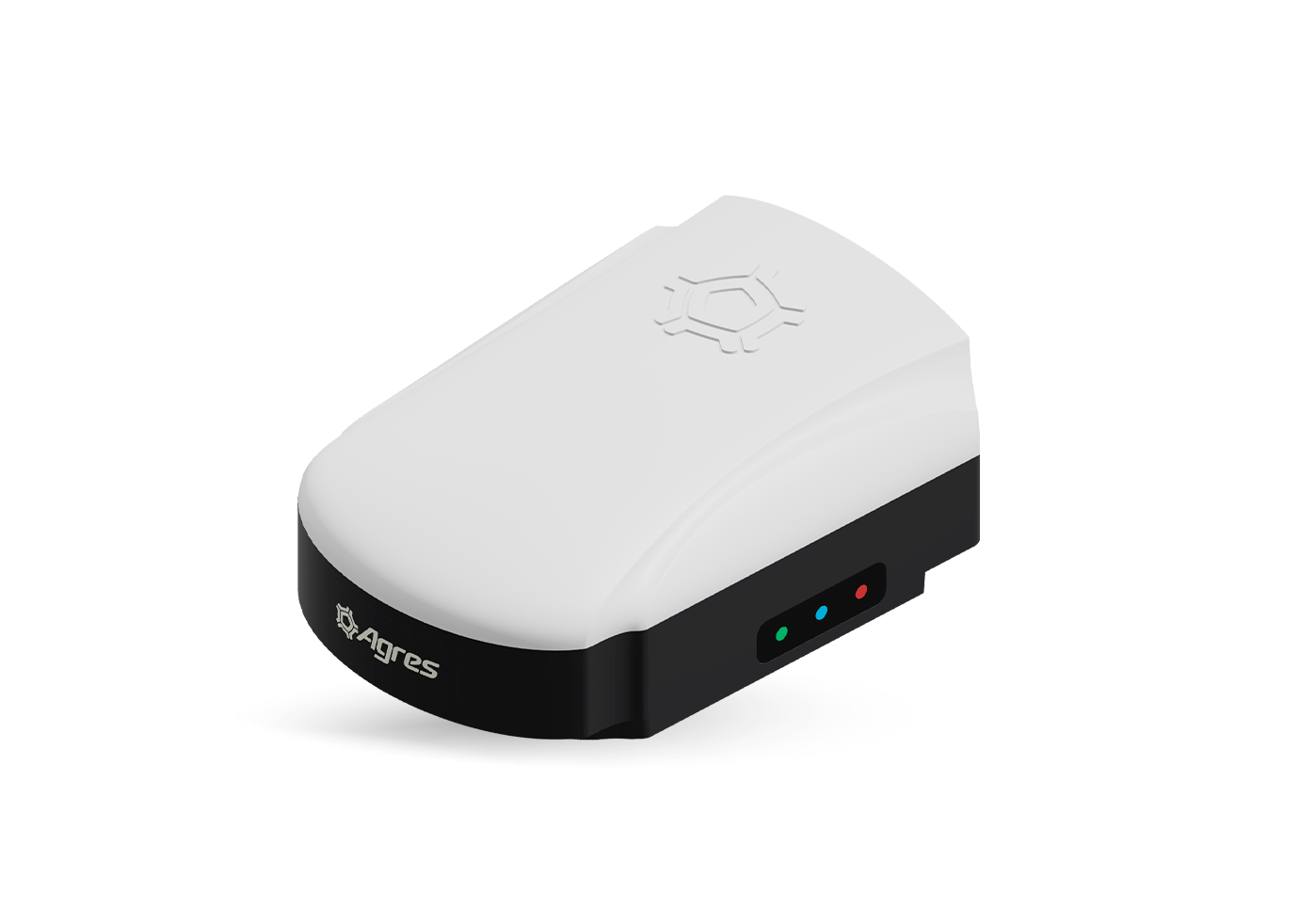

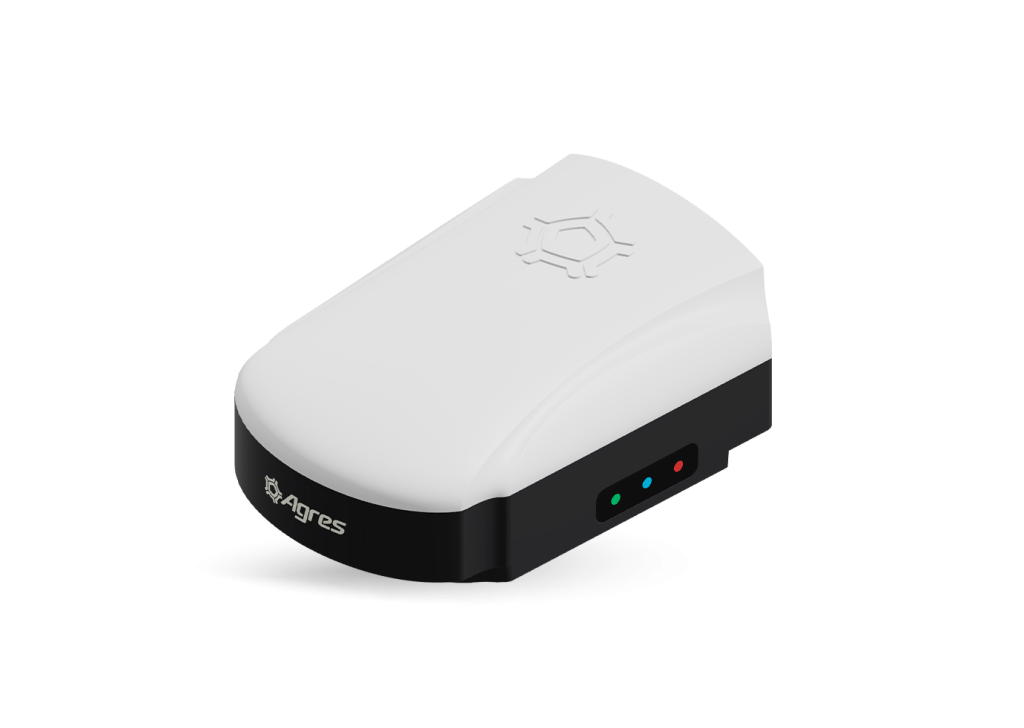

NEW! ANR 30 | ANR 30 PRO

A ANR 30 It was developed for operations that require high precision and stability in any field condition. Compatible with RTK and satellite corrections, it delivers centimeter-level positioning and high reliability in planting, spraying, fertilization, and harvesting.

With greater satellite availability and improved correction capabilities, the models ANR 30 e ANR 30 PRO They guarantee a more stable signal and high precision for advanced operations. Their architecture facilitates integration with different onboard computers and agricultural systems.

Multi-constellation and multi-frequency for greater stability.
Greater accuracy with RTK and satellite corrections.
Simple integration with multiple interfaces.
Enhanced compatibility with NMEA protocol.
Suitable for all stages of field operations.

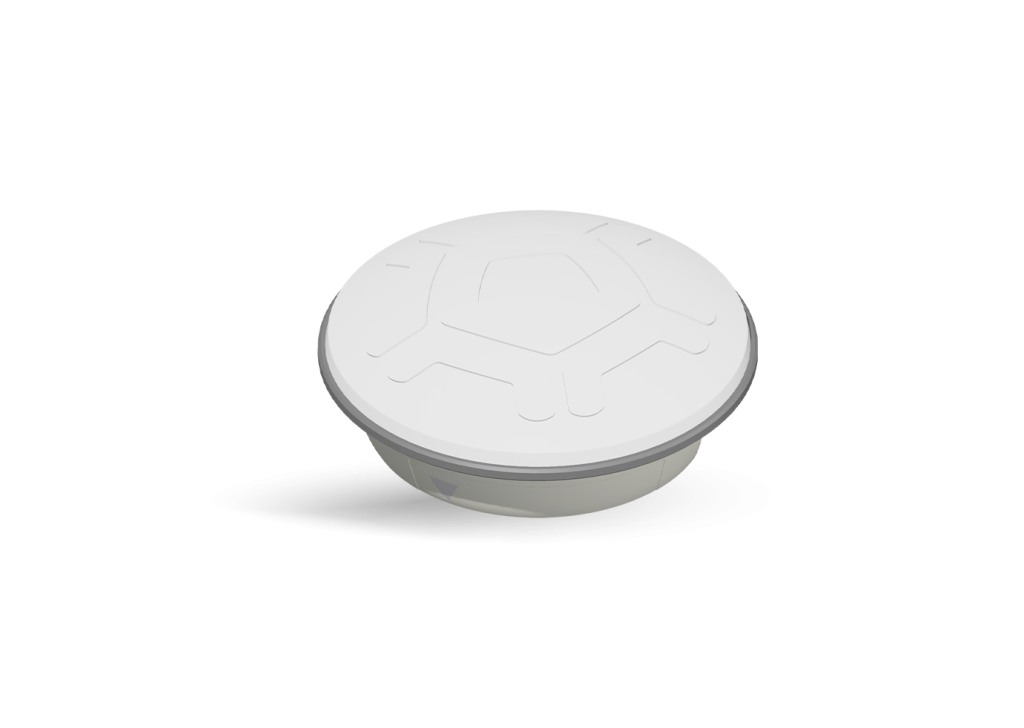

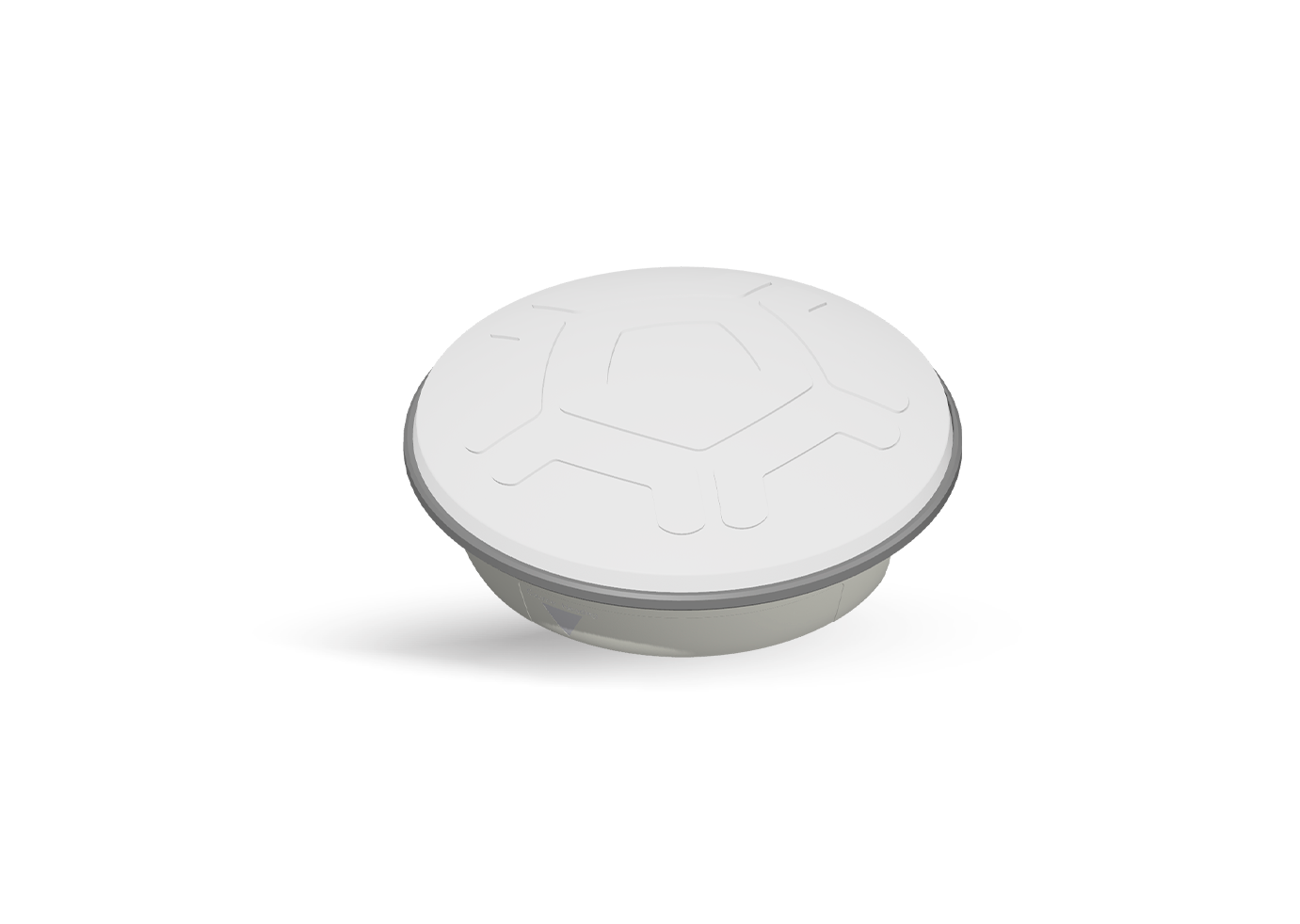

ANR 20

A ANR 20 It offers consistent positioning for spraying and fertilization, whether with virtual guidance or autopilot. Practical and reliable, it is ideal for those seeking good performance with excellent cost-benefit.

With multi-constellation support and integrated terrain compensation, the ANR 20 It maintains stable positioning even on inclined surfaces. Its compatibility with the NMEA protocol facilitates use with different systems.

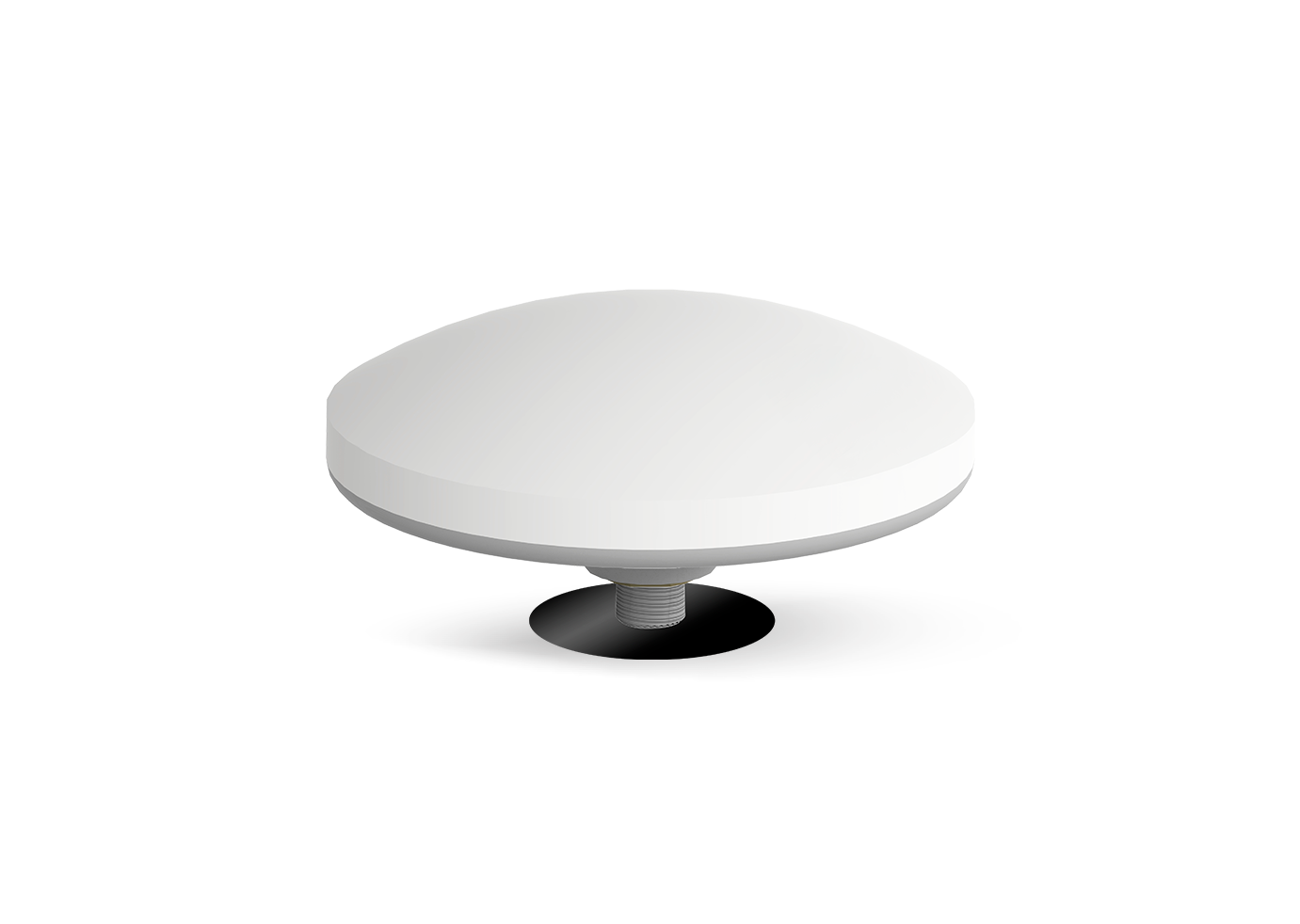

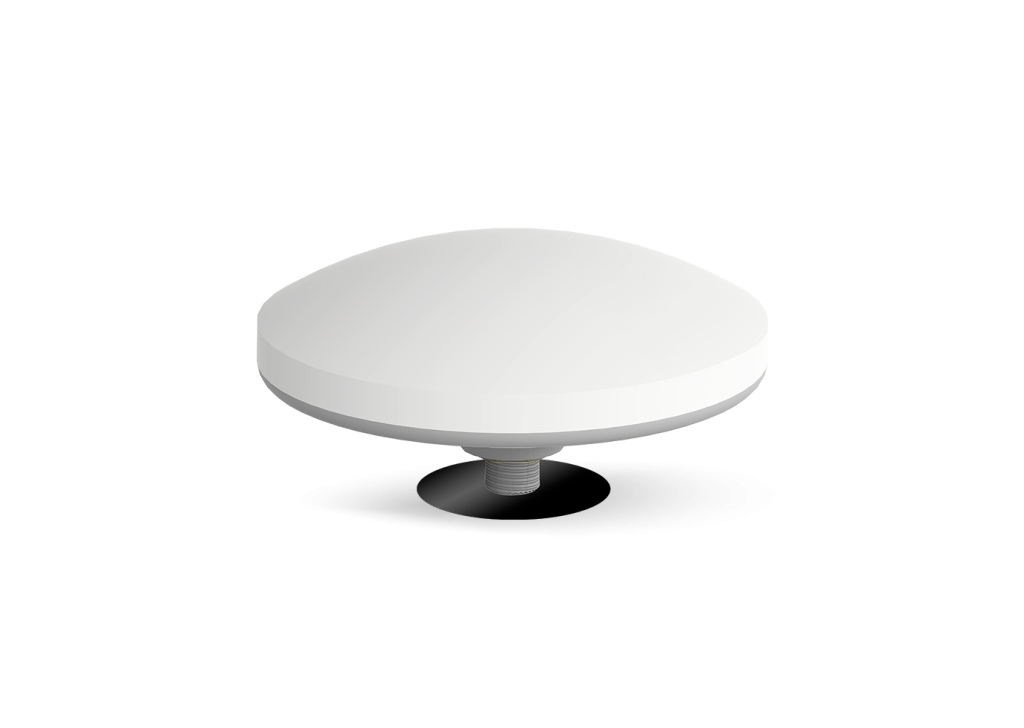

ANR 10

A ANR 10 This antenna is ideal for those seeking consistent precision for virtual guidance navigation, spraying, and fertilization. Robust and simple to operate, it offers a clear path for evolution and can be upgraded with the module. 21 ANP for applications that require autopilot.

With multi-constellation and multi-frequency reception, the ANR 10 It delivers adequate precision for essential operations. Although it does not have an integrated terrain compensator, it can be upgraded with the module. 21 ANP, allowing RTK and satellite corrections to be enabled to meet more demanding requirements in the field.

Greater stability with multi-constellation and multi-frequency systems.
Precision for essential operations
Upgrade for terrain compensator
RTK and satellite corrections via upgrade
Robust and simple to operate on a daily basis

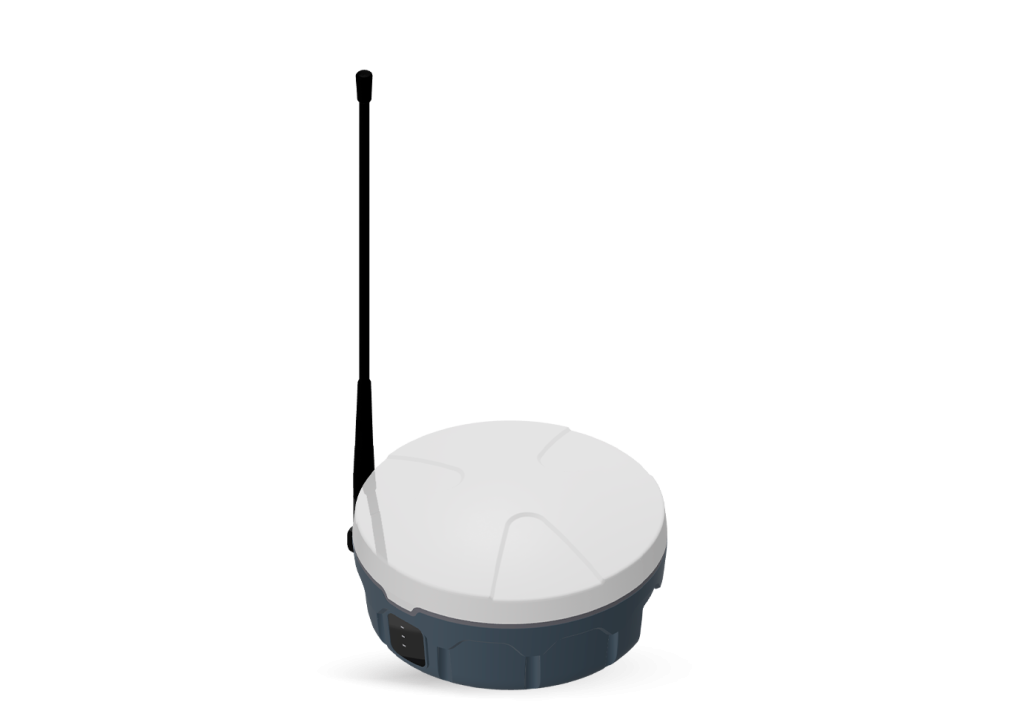

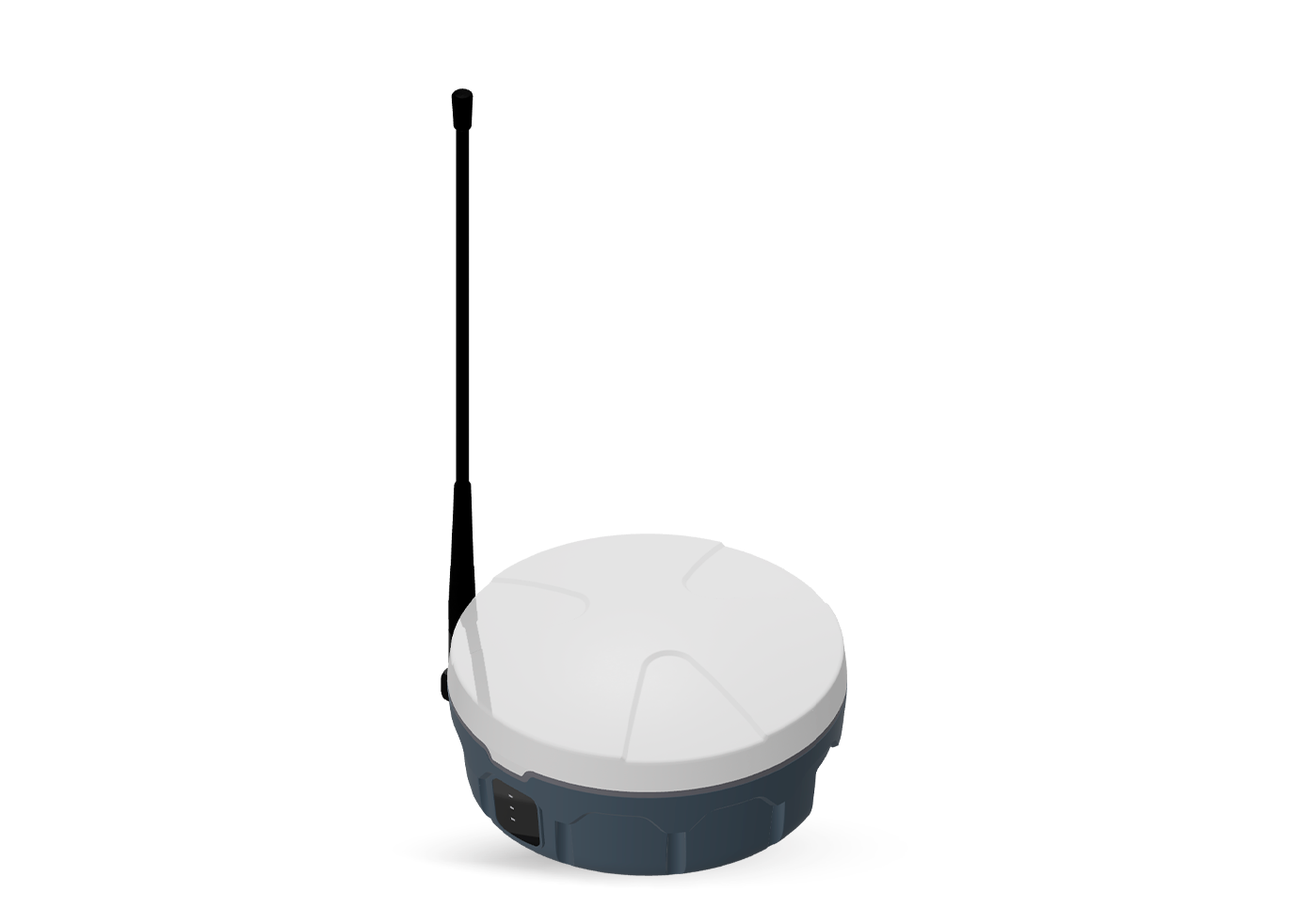

NEW! RTK10

A RTK10 It is the ideal base station for smaller properties, rotating areas, or temporary setups. Lightweight, compact, and easy to transport, it delivers RTK corrections with a recommended range of 3 to 5 km. It's perfect for those seeking mobility and practicality in their daily lives.

Its portable design allows for quick setup and activation, making it the right choice for those who share the base station between different plots or need RTK corrections at specific times. Bluetooth connectivity facilitates diagnostics and station adjustment whenever necessary.

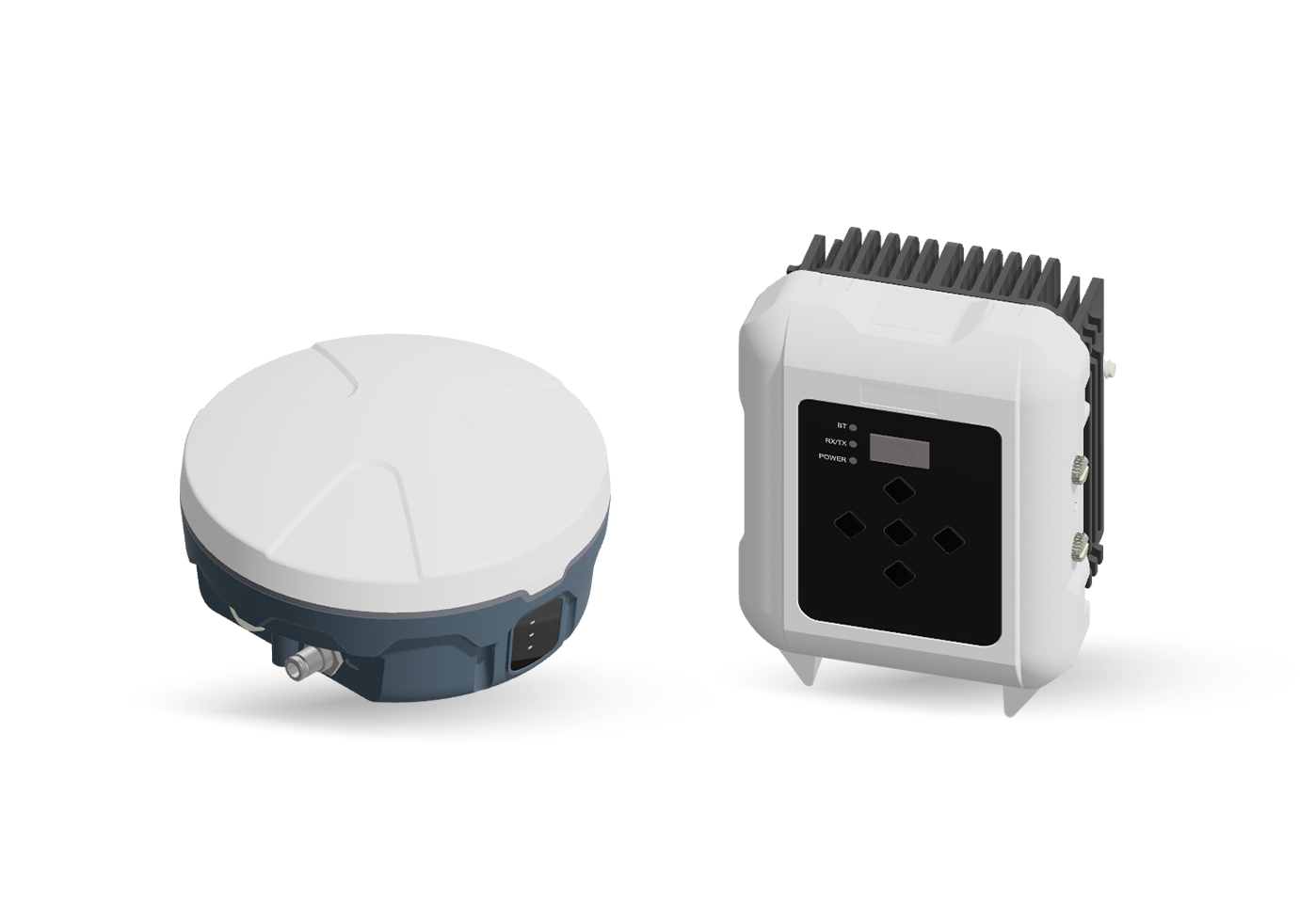

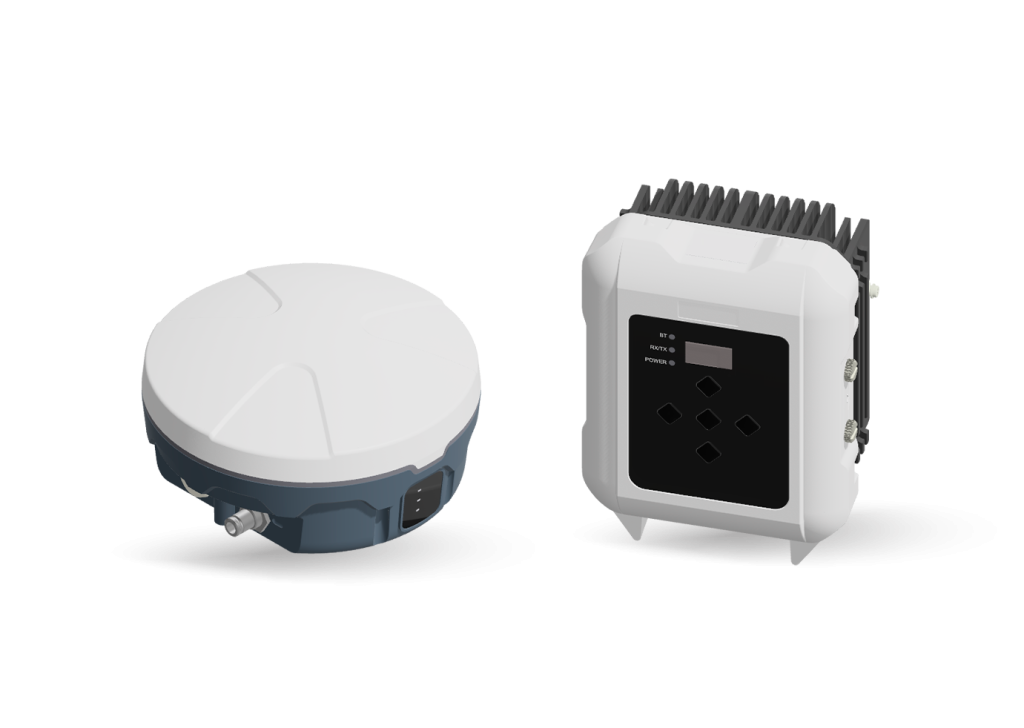

NEW! RTK50

The RTK 50 was designed for large properties and continuous operations, offering wide coverage with a recommended range of 15 to 20 km. It is the right choice for those who need a stable RTK signal over long distances and equipment operating simultaneously in different plots.

With its robust construction, integrated keypad, and channel selection, the RTK 50 allows you to adjust communication between base and rover according to operational needs. Its robust architecture ensures stability and high performance even in intensive and long-duration operations.

Suitable for large farms and continuous operations.
Ideal for long distances and multiple plots.
Extended coverage with a range of 15 to 20 km.
Robust operation for intensive work schedules.
Enhanced control with keypad and channel selection.

Comparative


	ANR 10	ANR 20	ANR 30	ANR 30 PRO
ABSOLUTE PRECISION	1,5 m \| 0,6 m SBAS \| 0,025 m TerraStar \| 0,01m RTK	1,2 m \| 0,6 m SBAS	1,2 m \| 0,6 m SBAS \| 0,01m RTK	1,2 m \| 0,6 m SBAS \| 0,025 m TerraStar \| 0,01m RTK
PRECISION BETWEEN STRIDES	0,3 m \| 0,025 m TerraStar \| 0,01m RTK	0,3 m	0,2 m \| 0,15 m HAS \| 0,01m RTK	0,2m \| 0,15 m HAS \| 0,025 m TerraStar \| 0,01m RTK
SIGNAL CORRECTIONS	SBAS, TerraStar	SBS extension	SBAS, HAS, RTK 4G, Base RTK	SBAS, HAS, RTK 4G, Base RTK, TerraStar
BANDS	L1, L2, L5	L1	L1, L2, L5	L1, L2, L5
CONSTELLATIONS	GPS, GLONASS, BDS, GALILEO	GPS, GLONASS, BDS, GALILEO	GPS, GLONASS, BDS, GALILEO	GPS, GLONASS, BDS, GALILEO
UPDATE RATE	N/A	10 Hz	Up to 20Hz	Up to 20Hz
PROTOCOLS	N/A	NMEA0183	NMEA 0183, NMEA 2000, RTCM 2.X/3.X	NMEA 0183, NMEA 2000, RTCM 2.X/3.X
INTERFACES	N/A	RS-232, Bluetooth	RS-232, CAN, Bluetooth, 4G	RS-232, CAN, Bluetooth, 4G
PROTECTION	IP67K	IP67K	IP67K	IP67K
APPLICATIONS	Guide, Spraying, Fertilization	Guide, Spraying, Fertilization	Guiding, Piloting, Spraying, Fertilizing, Planting, Harvesting	Guiding, Piloting, Spraying, Fertilizing, Planting, Harvesting


	RTK10	RTK50
PROTOCOLS	RTCM 2.X/3.X	RTCM 2.X/3.X
INTERFACES	RS-232, Bluetooth	RS-232, Bluetooth
PROTECTION	IP67K	IP67K
SCOPE	3–5km	15–20km
APPLICATIONS	Mobile Base Station	Fixed Base Station
KEYBOARD
