STABILITY AND REPEATABILITY IN CROPS Signal Correction Line

The NAVE line brings together different levels of GNSS precision, from the use of open signals received by ANR antennas to satellite signal corrections and RTK. Each level was developed to meet different operational requirements, ensuring alignment, stability, and repeatability in all agricultural operations, regardless of the crop, implement, or stage of the production cycle.

At initial precision levels, navigation uses open signals, received directly from satellites, without applying additional corrections. This type of positioning is suitable for operations that do not require high repeatability over time.

As operational demands increase, signal corrections come into play. They reduce natural variations in positioning, ensuring stability between passes and consistency of work lines over time and across harvests.

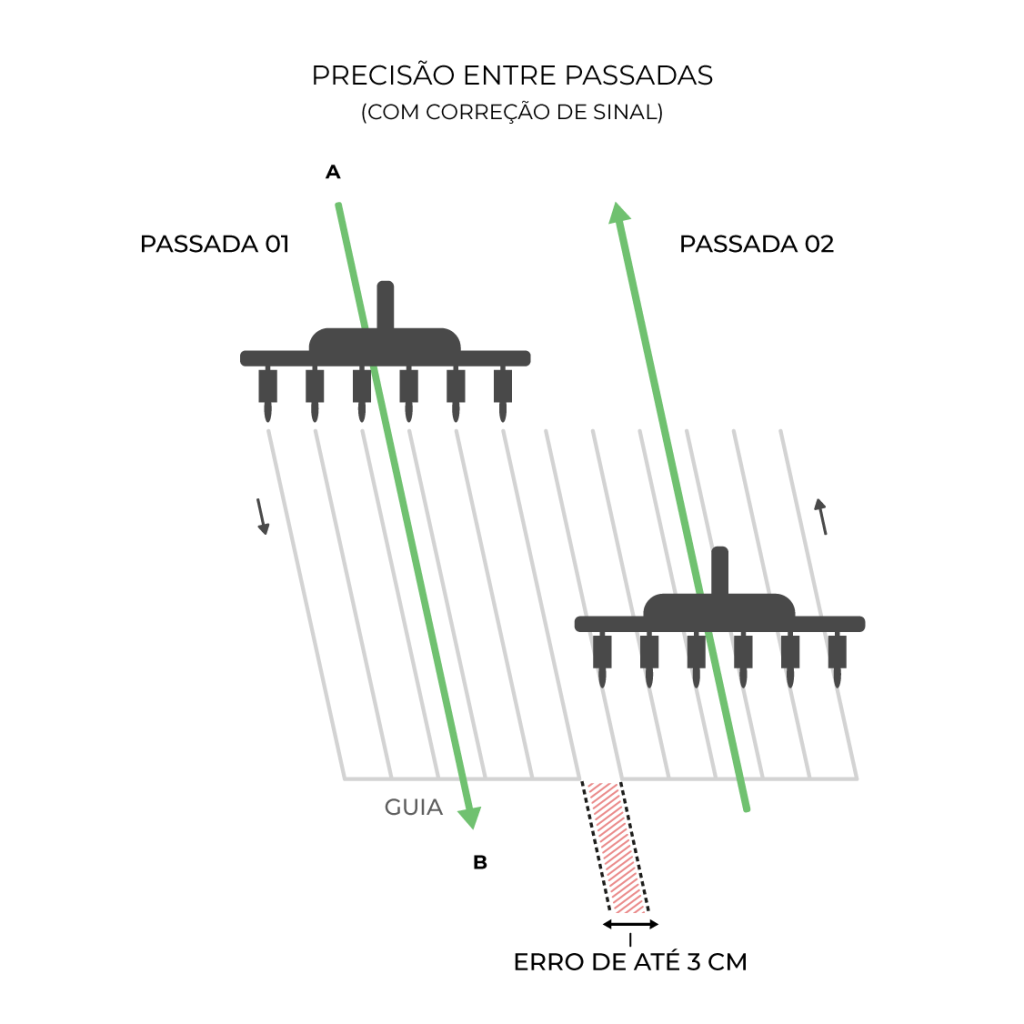

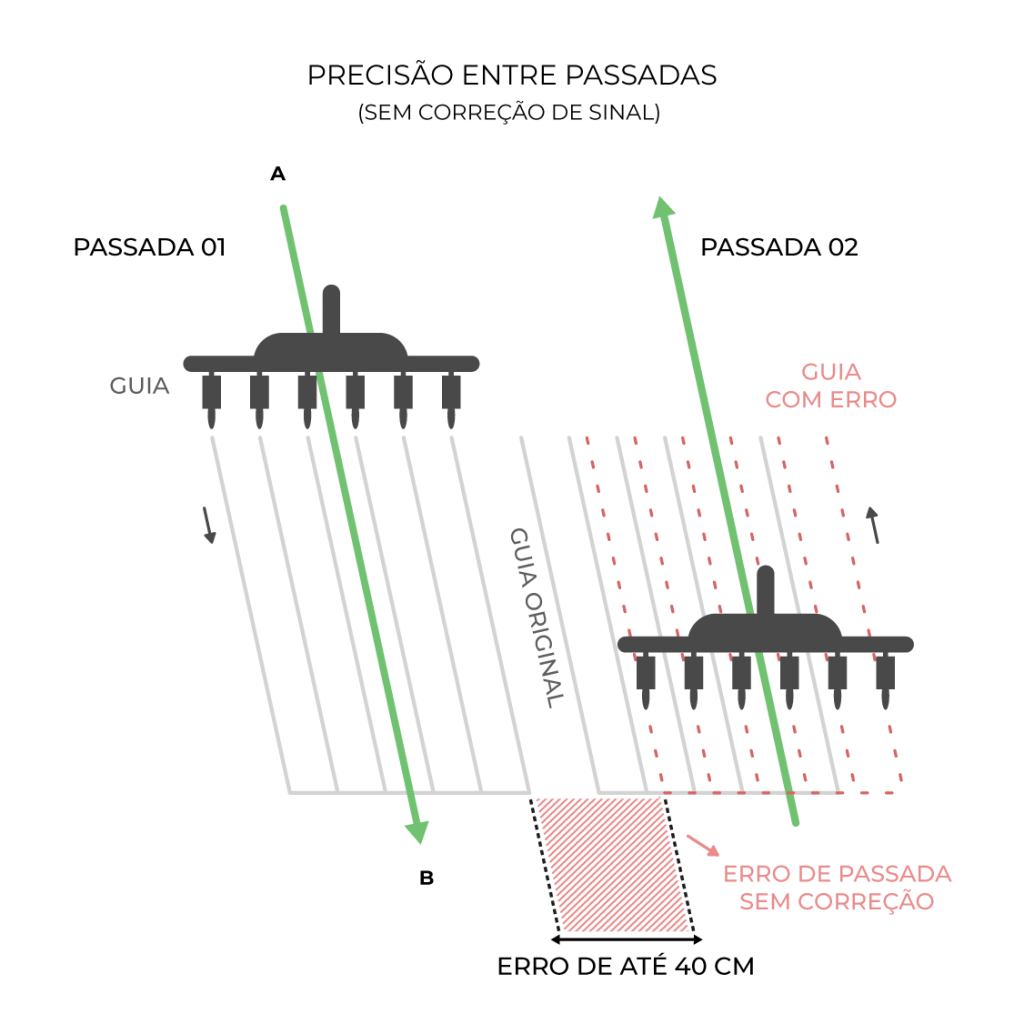

Repetition across past

The higher the level of precision, the more consistent and aligned the work lines are within the same operation.

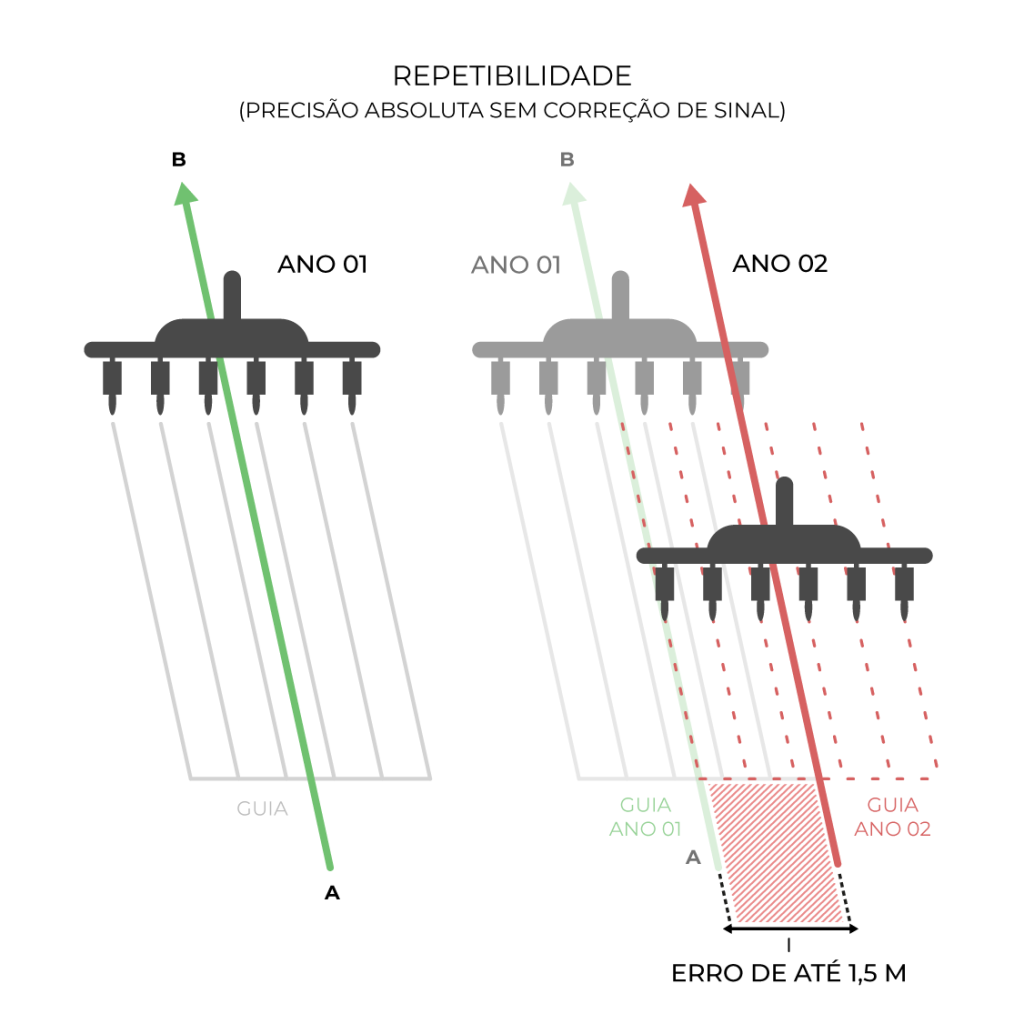

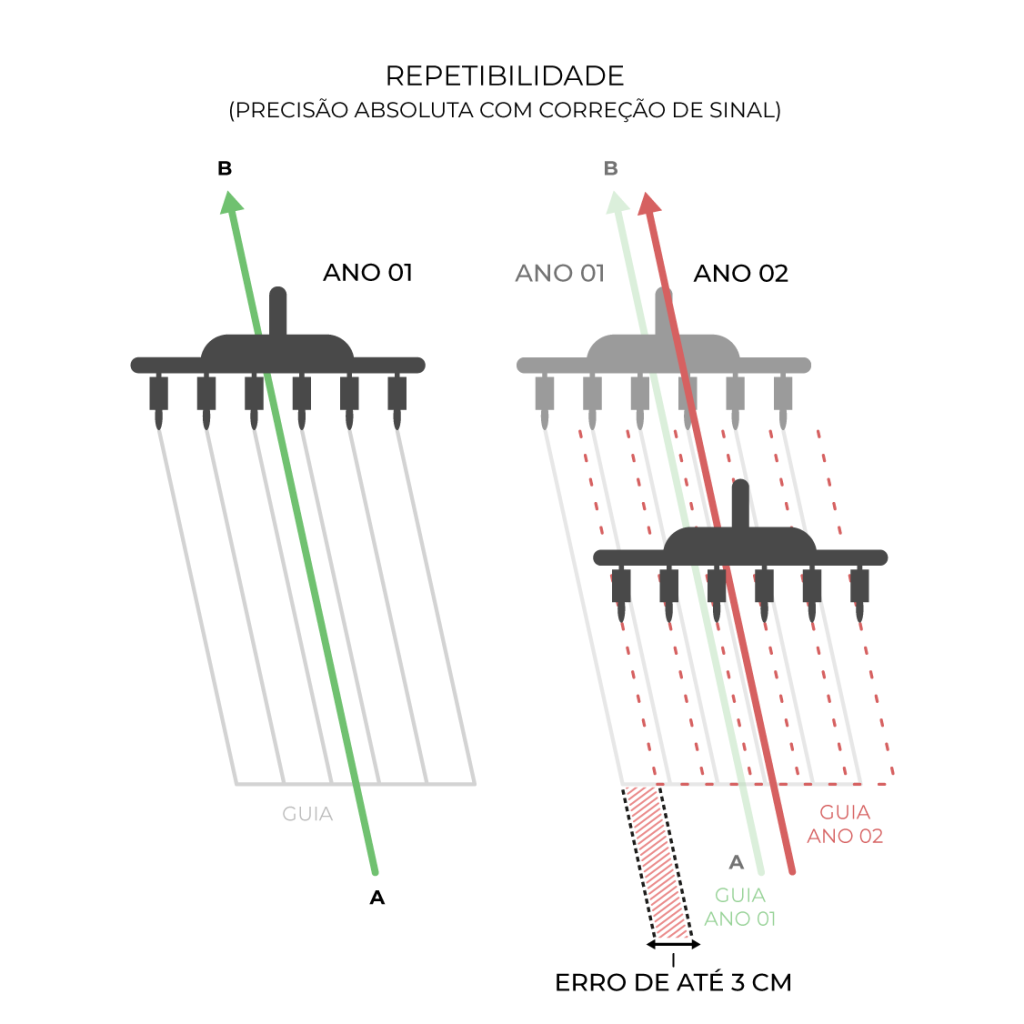

Repeatability across harvests

Signal corrections allow for more precise repetition of operations over time, maintaining the same alignment across different production cycles.

NAVE Line — Levels of Precision

Nave 30

Functional precision for basic autopilot.

Nave 20

Stability for autopilot with open signal

Nave 15

Satellite signal correction for greater repeatability.

NAVE PRO

Advanced satellite correction for strategic operations

Nave RTK

Correction RTK for precision centimetric

The right precision for every job.

	Nave 30	Nave 20	Nave 15	NAVE PRO	Nave RTK
Precision between passes	30 cm	20 cm	15 cm	2,5 cm	1 cm
Type	Open single-frequency GNSS signal	Open dual-frequency GNSS signal	Satellite signal correction	Satellite signal correction	RTK correction via base
Applications	Basic autopilot and virtual guide	Autopilot with greater stability	Autopilot with satellite correction	Autopilot with satellite correction and high repeatability.	RTK autopilot with centimeter-level precision
Recommended use	Spraying Spreading	Harvest Spraying Spreading	Harvest Spraying Spreading	Harvest Spraying Spreading Seeding	Harvest Spraying Spreading Seeding
Antena	ANR 10 · ANR 20	ANR 10 + ANP 21 ANR 30 · ANR 30 PRO	ANR 10 + ANP 21 ANR 30 · ANR 30 PRO	ANR 10 + ANP 21 ANR 30 PRO	ANR 10 + ANP 21 ANR 30 · ANR 30 PRO
Anual Subscription	No	No	No (ANR 30) Yes (ANR 10 + ANP 21 · ANR 30 PRO)	Yes	No

What do you gain from signal correction?

Specialized technical support

Technical guidance for choosing, configuring, and evolving the precision level of your operation.

Integration with isoFarm

Compare and manage the effects of each precision level on your operation.

Free trial

30 days of access to the signal correction service for producers who are not yet using this technology.

Testimony

Those who already use signal correction notice the difference.

Planting and spraying without paying the fine? Never again!

With Agres equipment and the paid service, my operations became much more precise, with no waste and no crushing.

Rate control makes all the difference: each input is applied in the right measure, resulting in savings and better use of the area.”

Today I work more efficiently and achieve much better results.”

Vitor Finger – Rural Producer

What's your next step?

Is it just starting now?

Explore our kits suggested e I found a combination ideal of computer, antenna, pilot automatic e level de precision for yours Operação.

Do you want to improve the accuracy of your operation?

Our team can to help a evaluate upgrades precision, evolve all with corrections de signal ou migrate for RTK, from agreement to Olos technology yours reality in the field.

To request signal correction service, please fill in the information below:

Attach a screenshot of Equipment information.(.jpg)

Attach a screenshot of "Information from the terrain compensator."(.jpg)

How to locate equipment information:

Want to see all our products?

Download the complete Agres catalog now and discover how technology can transform your farming.

Download
